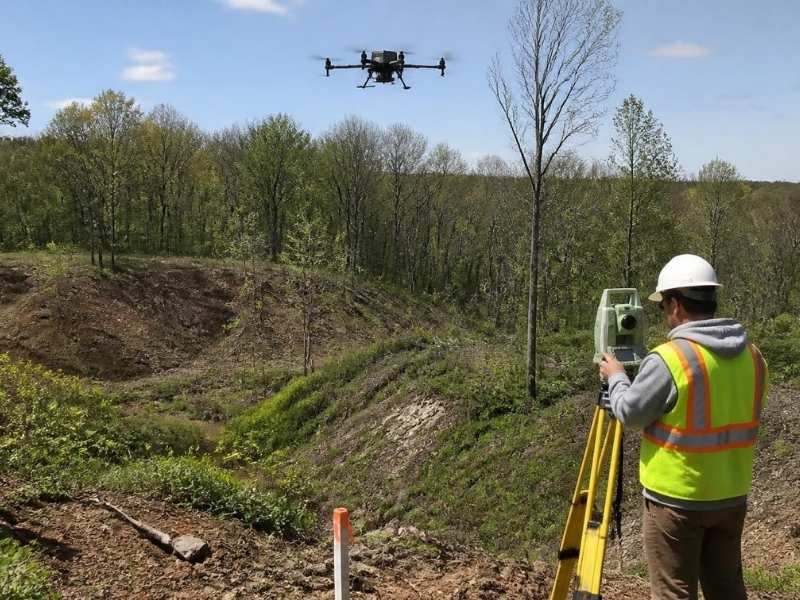

Some sites hide their real shape. Thick brush, steep grades, and wide acreage can make the ground hard to read from a tripod. Drone-based LiDAR mapping gives surveyors another way to capture that terrain. By collecting dense elevation data across difficult ground, it can give designers a clearer picture of the site before construction begins. For a developer, better terrain information can mean fewer surprises when grading and drainage work starts.

Drone-Based LiDAR Captures Terrain Details That Are Hard to See From the Ground

A ground crew can only measure what it can safely and efficiently reach. On a large or rough site, steep slopes, dense vegetation, and uneven terrain can make that work slower and leave areas with less coverage.

A drone can cover the site from above along a planned flight path. Its LiDAR sensor collects elevation measurements across the area, creating a dense set of points that can describe the existing surface in much greater detail.

This broader coverage is especially useful on difficult ground. Instead of relying only on measurements taken at accessible locations, the survey team can build a more complete representation of the terrain. That information gives designers a stronger starting point for evaluating the site.

Laser Returns Help Build a More Detailed Picture of the Ground Surface

LiDAR uses laser pulses to measure distance. The sensor sends pulses toward the surface and records how long they take to return. Those measurements are processed into elevation points that can be used to create a terrain model.

Vegetation is one reason LiDAR can be useful. A pulse may strike a leaf or branch first, while another return from the same pulse can reach a lower surface. Processing software can classify the different returns and help identify which points represent the ground.

This does not mean LiDAR automatically sees through every type of vegetation. Dense vegetation, site conditions, sensor specifications, and processing methods all affect the final result. When conditions are suitable, however, LiDAR can provide valuable ground information that would be difficult to collect from aerial imagery alone.

Dense Elevation Points Make Small Changes in Terrain Easier to Detect

Terrain accuracy is not only about finding the highest and lowest points. Small changes in elevation can affect drainage, grading, and how a site is developed. A dense point cloud can capture details that a sparse set of measurements might miss.

These features can include:

• Subtle changes in grade across a slope
• Natural drainage paths and low areas
• Small depressions that may collect runoff
• Berms, embankments, and other raised features
• Breaks in otherwise consistent slopes

These details become useful during site design. A shallow drainage path may influence where stormwater flows. A small depression may require grading or drainage improvements. Finding these conditions during the planning stage gives the design team time to respond before construction begins.

Ground Control and Survey Checks Help Verify Drone LiDAR Accuracy

Drone LiDAR data still needs to be tied to reliable survey information. The drone can collect a large amount of data, but survey control and verification help determine how accurately that information represents the actual site.

Ground control points can provide known positions and elevations across the project area. The LiDAR data can then be referenced to those points, helping establish a consistent coordinate and elevation framework.

Field checks are also important. Surveyors can compare selected ground measurements with the LiDAR-derived surface to identify differences. Flight planning, sensor performance, positioning, processing, and site conditions can all affect the final results, so quality control should be part of the mapping process.

The goal is not simply to create a dense point cloud. The goal is to produce terrain information that the project team can confidently use.

Accurate Terrain Models Give Designers Better Data for Difficult Sites

A verified terrain model gives designers a detailed view of existing ground conditions before grading and drainage plans are finalized. That information can influence several parts of a development.

Grading designers can use existing elevations to plan cuts, fills, and transitions. Drainage designers can study slopes and low points to understand how water may move across the property. Site planners can also identify terrain constraints before building locations, roads, and other improvements are fixed.

Drone-based LiDAR is not the right choice for every property, and it does not replace all conventional survey work. On large, steep, or heavily vegetated sites, however, it can add valuable coverage and detail when combined with proper survey control and field verification.

Bringing the technology into the early planning stage can give the project team a clearer understanding of the land before major design decisions are made. Better terrain data does not remove every site challenge, but it helps turn hidden conditions into information the team can plan around.

Frequently Asked Questions

What is drone-based LiDAR mapping?

Drone-based LiDAR mapping uses a LiDAR sensor mounted on an unmanned aircraft to collect dense elevation data across a site. The sensor measures laser returns and uses them to create a detailed collection of elevation points. Survey control and field checks can then help verify the resulting terrain information. It is particularly useful for large or difficult areas where ground collection may be challenging.

How does LiDAR help identify the ground beneath vegetation?

LiDAR can record multiple returns from some laser pulses. One return may come from vegetation while another may reach the ground below. Processing software can classify these returns and identify points that represent the ground surface. The effectiveness depends on vegetation density, site conditions, sensor capabilities, and data processing.

Is drone LiDAR accurate enough for design work?

It can provide useful design-grade terrain information when the project is properly planned, controlled, processed, and verified. Ground control points and independent field checks help confirm that the LiDAR surface matches known site conditions. Accuracy requirements vary by project, so the surveyor should determine whether the collected data meets the intended design or mapping purpose.

When is drone LiDAR useful for terrain surveys?

Drone LiDAR is especially useful on large, steep, rough, or vegetated sites where collecting extensive ground measurements would be difficult or time-consuming. It can provide broad coverage while capturing detailed elevation information. Conventional survey methods may still be needed for control, boundaries, and detailed verification.

What can designers use a LiDAR terrain model for?

Designers can use a verified terrain model to support grading, drainage, site planning, and earthwork analysis. Existing elevation data helps reveal slopes, low points, drainage paths, and other terrain features before the design is finalized. This gives the project team better information for working around existing site conditions.
